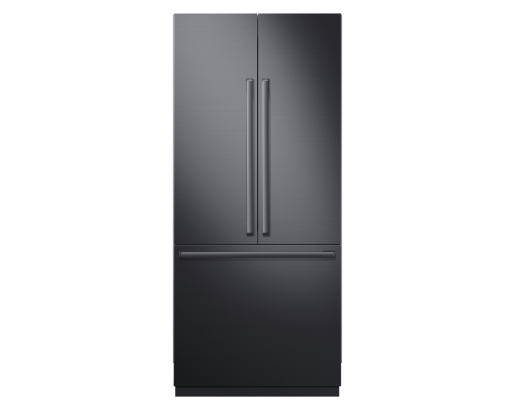

36 Inch Built-In French Door

Contemporary Style / Graphite Stainless

current-slide OF Total

Discover the most advanced way to preserve food and ignite conversation. With revolutionary innovations like seamless 3DLighting, MetalCool interior and a FreshZone drawer, Dacor brings beauty and performance to life like never before.

MODEL NO

DRF365300AP

RAF36AMAAMS (Panel Kit)

DIMENSIONS
W 35-3/4" | H 83-3/8" | D 23-13/16"
FINISHES

Panel Ready

Silver Stainless

Graphite Stainless

HANDLE TYPE

Professional

Transitional

Contemporary

N/A

N/A

N/A

May We Help You?

See how Dacor French Door refrigerators are rated by Consumer Reports for 2021.

**Consumer reports does not endorse products or services**

Learn More

Dacor Distinctives

PRECISE COOLING TECHNOLOGY

Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.

Hidden Touch Control Panel

Touch to reveal a display that regulates temperature to preserve freshness

FRESHZONE

Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.

ICE MAKER

Creates crescent shaped ice

INTERNAL WATER DISPENSER

Serves fresh, filtered water and easily fill cups or pitchers.

METAL COOLING

The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.

SMART CONNECTIVITY

Whether you're near the kitchen or away from home, IQ Control with SmartThings® integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.

PRECISE COOLING TECHNOLOGY

Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.

Hidden Touch Control Panel

Touch to reveal a display that regulates temperature to preserve freshness

FRESHZONE

Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.

ICE MAKER

Creates crescent shaped ice

INTERNAL WATER DISPENSER

Serves fresh, filtered water and easily fill cups or pitchers.

METAL COOLING

The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.

SMART CONNECTIVITY

Whether you're near the kitchen or away from home, IQ Control with SmartThings® integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.

Product Comparison

Specifications

SPECIFICATIONS
Specifications (.pdf) 82.8 KB
Download

OVERALL DIMENSIONS

Custom Panel Dimensions : Refrigerator Width

Height : 49-3/16" Freezer Width

Height : 30-9/16"

Depth : 3/4" Appliance Dimensions

Height : 83-3/8"

Depth : 23-13/16"

Please refer to the Installation Instructions for more detailed dimensions.

INTERIOR CAPACITY

Total Unit Gross Capacity – AHAM : 21.3 cu. ft.

Refrigerator Gross Capacity : 14.5 cu. ft.

Freezer Gross Capacity : 6.8 cu. ft.

REQUIREMENTS

Electrical: 115V, 60Hz, 3A

ACCESSORIES

RAF36AMAAMS : 36" 3-Door Built-In French Door Refrigerator Panel Kit, Contemporary, Graphite

INTERIOR CONFIGURATION

Full Width Shelves – Refrigerator : 2 ea.

Adjustable Shelves – Refrigerator : 2 ea.

Shelf Material : Tempered Glass Shelves with Metal Trim

Full Extension Drawers at 90° Door Opening Angle : Yes

FreshZone Drawer : Yes – Cheese (37°F) / ColdDrinks (33°F) / Mea.t (29°F)

Humidity Control Drawer : 2 ea.

Door Bins : 6 ea.

TEMPERATURE RANGES

FreshZone Drawer : 37°F (3°C) / 33°F (1°C) /29°F (-1°C)

Freezer : 5°F (-15°C) to -8°F (-23°C)

Freezer – Power Freeze : -8°F (-23°C)

Temperature Fluctuation : ±0.9°F* (±0.5°C*)

Refrigerator : 34°F (1°C) to 44°F (7°C)

Refrigerator – Power Cool : 34°F (1°C)

EFFICIENCY

ENERGY STAR Qualified : Yes

Annual Energy Consumption : 549 kWh

CONFIGURATIONS

Resources

MANUALS & DOWNLOADS

SPECIFICATIONS

Specifications (.pdf)

82.8 KB

MANUALS

Installation Manual (.pdf)

15.4 MB

User and care Manual (.pdf)

Energy Guide (.pdf)

CAD

3D-CAD-DRF367500AP-AutoCAD (.dwg)

1.2 KB

3D-CAD-DRF367500AP-Sketchup (.skp)

1.2 KB

3D-CAD-DRF367500AP-DXF (.dxf)

1.2 KB

3D-CAD-DRF367500AP-ArchiCAD (.pln)

1.2 KB

3D-CAD-DRF367500AP-Revit (.rfa)

384.0 KB

3D-CAD-DRF367500AP-3DS (.3ds)

1.2 KB

WARRANTY

2 years parts & labor
